Mobile CCTV Camera for Passenger Cars&EMUs Guide

Table of contents:

I. Introduction

The importance of mobile video surveillance for passenger cars and high-speed trains.

II. Benefits of Mobile Video Surveillance Camera Solutions for Passenger Cars and High-Speed Trains

Increase safety and security for passengers and staff

Deter crime and prevent vandalism

Provide evidence for investigations

Monitor and manage train operations and maintenance

III. Key Features of Mobile Video Surveillance Camera Solutions

High-definition cameras with wide-angle views

Real-time video streaming and recording

Intelligent analytics for facial recognition, object detection, and behavior analysis

Wireless connectivity and remote access

IV. Implementation of Mobile Video Surveillance Camera Solutions for Trains

A. Planning and design considerations

B. Installation and integration with existing surveillance systems

C. Maintenance and upkeep requirements

V. Case Studies: Successful Implementations of Mobile Video Surveillance Camera Solutions

VI. Conclusion

Summarize the benefits and key features of mobile video surveillance camera solutions for passenger cars and high-speed trains.

I.Introduction:

In recent years, video surveillance cameras have become increasingly prevalent in the rail industry. With safety and security concerns at an all-time high, it's more important than ever to have effective monitoring solutions in place.

Mobile video surveillance camera solutions for trains offer a range of benefits over traditional fixed cameras, including increased flexibility and mobility, the ability to cover larger areas, and real-time monitoring and recording capabilities.

In this article, we will focus on the mobile video surveillance camera solutions for passenger cars and EMUs coaches, the advantages of using these solutions, the implementation process, and case studies of successful implementations in the industry.

II. Benefits of Mobile Video Surveillance Camera Solutions for Passenger Cars and High-Speed Trains

• Increased safety and security for passengers and staff

Mobile video surveillance cameras provide additional security for passengers and staff by monitoring activity inside and outside the train. This includes monitoring entrance and exit points, baggage storage areas, and public areas such as dining cars and restrooms. In the event of an incident, staff can view the footage to identify potential threats and respond accordingly.

• Deterring crime and preventing vandalism

The presence of video surveillance cameras can act as a deterrent to criminal activity and vandalism. Knowing that you are being monitored can deter individuals from engaging in criminal behaviour, reducing the number of incidents on trains.

• Provide evidence for investigations.

In an incident, video footage can provide critical evidence for an investigation. This can include capturing details of an altercation, identifying suspects or witnesses, and providing a timeline of events. Video evidence can also help support insurance claims and liability disputes.

• Monitor and Manage Train Operations and Maintenance

Mobile video surveillance cameras can also monitor and manage train operations and maintenance. Cameras can be installed in engine compartments and braking systems to monitor potential problems or malfunctions. Footage can also be used to monitor crew performance and ensure safety protocols are followed.

Overall, mobile video surveillance camera solutions offer many benefits for passenger cars and high-speed trains, including increased safety and security, deterring criminal activity, providing critical evidence for investigations, and improving train operations and maintenance monitoring and management.

III. Key Features of Mobile Video Surveillance Camera Solutions

Mobile video surveillance camera solutions have some key features that make them very effective in security. These features include:

High-definition cameras with expansive angle views: Mobile video surveillance cameras are equipped with high-quality cameras that capture a clear and detailed picture of the surrounding environment. The camera resolution supports 1920 x 1080/1280 x 720 and supports 60 fps, 30 fps and 25 fps adjustable.

Real-time video streaming and recording: Mobile video surveillance cameras can store captured video and audio information in real-time, allowing security personnel to monitor the surroundings in the event of an incident. These cameras can also record footage for later review and analysis.

Intelligent analytics for facial recognition, object detection and behaviour analysis: Many mobile video surveillance cameras have advanced analytics that detects and recognizes faces, objects and behaviour patterns. This can help security personnel identify potential threats and take proactive measures to prevent them. Our mobile video surveillance devices are equipped with infrared night vision to fill light, infrared adaptive; effective infrared night vision distance under 0.1LUX 5m can see the facial features of people, and 10m range can see the human body outline.

Wireless connection and remote access: using authorized external devices for query, playback and download functions.

IV. Implementation of Mobile Video Surveillance Camera Solutions for Trains

A. Planning and Design Considerations

Several planning and design considerations should be considered when implementing mobile video surveillance camera solutions for trains. These include:

Determining the optimal camera placement: To ensure that the cameras capture the necessary footage, the order of the cameras should be carefully considered. Factors such as the train's layout and the areas that need to be monitored should be considered.

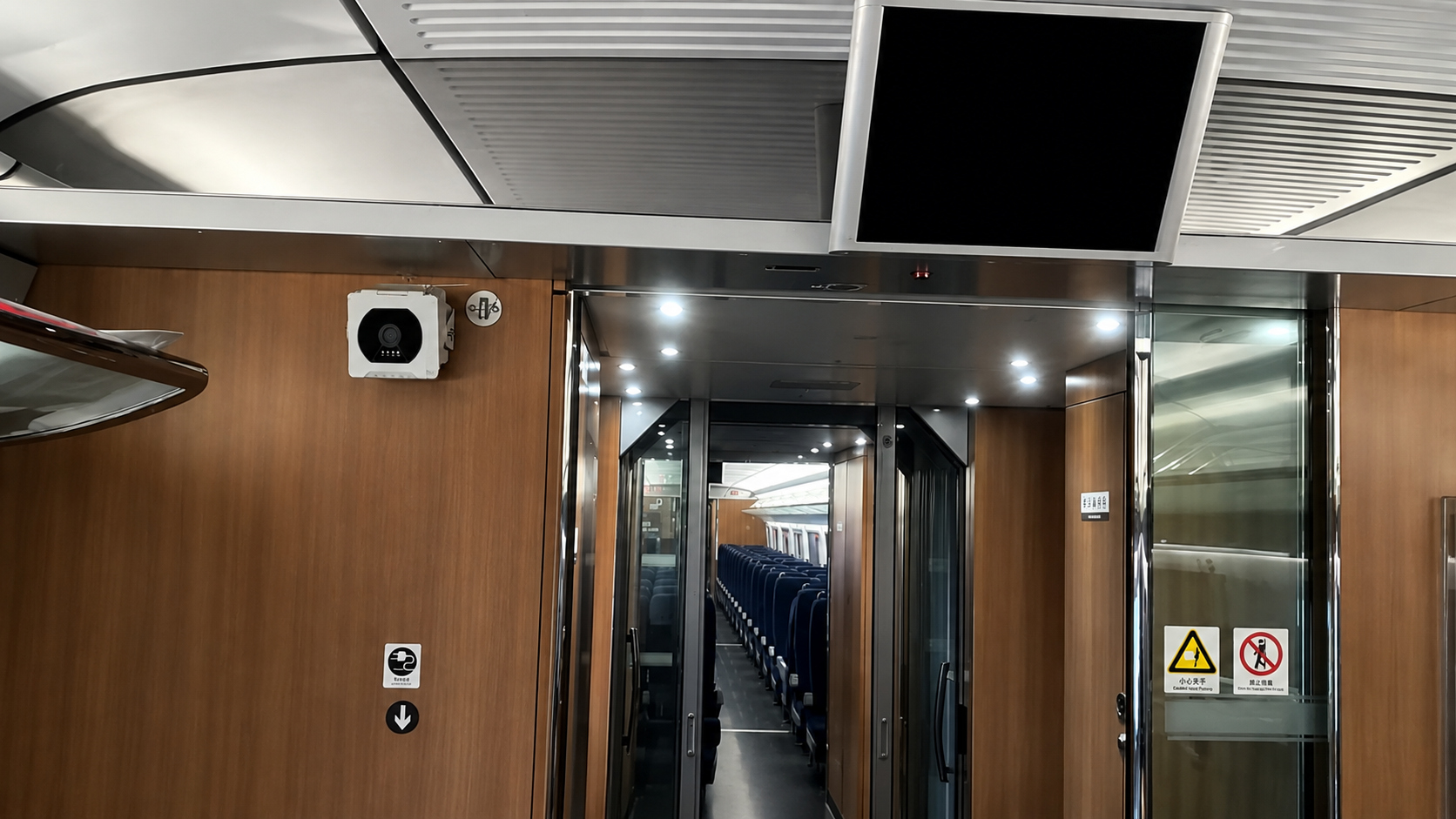

The mobile video surveillance device mountings developed by Shandong Tienuo are fixed to the vehicle end wall and other parts. The main body of the video surveillance device is set on the mounting seat conveniently for disassembly and assembly—the Video surveillance device with vehicle power supply and single camera storage.

Determining the necessary bandwidth and storage capacity: Mobile video surveillance cameras generate a large amount of data, which must be transmitted and stored. Choosing the bandwidth and storage capacity is essential to ensure the cameras can operate effectively.

The mobile video surveillance device storage developed by Tienuo meets the following requirements:

2pcs 512G memory cards with redundancy, read speed greater than 80MByte/s, write rate greater than 20MByte/s, erasable not less than 3000 times, failure-free use plugging times greater than 2000 times.

(a) The device supports different frame rates and different resolutions for storage;

(b) real-time storage of monitoring area audio and video data; video resolution of 1920 × 1080, frame rate of 25fps, storage capacity

storage capacity should be able to meet not less than 30 × 24h audio and video storage requirements;

(c) audio and video storage should be used rolling when the occupied storage media space reaches the upper limit, automatically overwriting the earlier audio and video data;

(d) audio and video recording every 30min storage of a file, with the date, time and number of cars, vehicle number, and car number (if any) named file. (if any) named file

Considering environmental factors: Mobile video surveillance cameras must be able to operate in a range of environments, such as extreme temperatures, vibration, and moisture. These factors should be considered when selecting cameras and designing the installation.

B. Installation and Integration with Existing Surveillance Systems

Installing and integrating mobile video surveillance camera solutions with existing surveillance systems involves several steps. These include:

Mounting the cameras: The cameras must be securely mounted on the train, considering factors such as visibility and accessibility.

Connecting the cameras to the network: Mobile video surveillance cameras are typically connected wirelessly to the network, but in some cases, wired connections may be necessary.

Integrating the cameras with existing surveillance systems: The footage captured by the mobile video surveillance cameras must be integrated with existing surveillance systems to enable real-time monitoring and recording.

C. Maintenance and Upkeep Requirements

Mobile video surveillance camera solutions require regular maintenance and upkeep to ensure effectiveness. Some considerations include the following:

Cleaning and maintenance: The cameras should be regularly cleaned and maintained to continue operating effectively. This may involve replacing lenses or cleaning sensors.

Software updates: The software running on the cameras and associated systems must be regularly updated to remain secure and up-to-date.

Data management: Mobile video surveillance cameras generate a large amount of data, which must be managed effectively to ensure that it is recovered and maintained. This may involve implementing backup systems and storage solutions.

V. Case Studies of Successful Mobile Video Surveillance Camera Solutions for Trains

A. Examples of Rail Companies That Have Successfully Implemented Mobile Video Surveillance Camera Solutions

CRRC: CRRC has installed mobile video surveillance cameras on its trains to help prevent crime and improve passenger safety. The cameras are connected to a central monitoring station, allowing for real-time monitoring of the trains.

B. Benefits and Impact of Mobile Video Surveillance Camera Solutions on the Rail Industry

The implementation of mobile video surveillance camera solutions has had a significant impact on the rail industry. Here are some of the benefits:

Improved Safety and Security: Mobile video surveillance cameras help to enhance the safety and security of passengers and staff by deterring criminal activity and identifying potential safety hazards.

Cost-Effective - Mobile video surveillance cameras are a cost-effective alternative to fixed camera systems as they do not require extensive infrastructure or cabling.

Enhanced Efficiency: Mobile video surveillance cameras allow real-time monitoring of trains and track conditions, enabling rail companies to respond quickly to incidents and minimize disruptions.

Better Maintenance: Mobile video surveillance cameras can help identify maintenance needs, such as track damage or equipment failure before they become significant issues.

Overall, implementing mobile video surveillance camera solutions has helped improve the safety, security, and efficiency of the rail industry, making it a valuable investment for rail companies.

VI. Conclusion

In conclusion, mobile video surveillance camera solutions are essential for ensuring the safety and security of passengers and staff on board passenger cars and high-speed trains. With their ability to deter crime, provide critical evidence for investigations, and monitor and manage train operations and maintenance, these solutions have become an integral part of the rail industry.

Some key features of mobile video surveillance camera solutions include high-definition cameras with wide-angle views, real-time video streaming and recording, intelligent facial recognition and behaviour analysis analytics, location-based services, and wireless connectivity with remote access.

As a professional rail security surveillance equipment supplier for rolling stock in China, we are committed to providing our customers with the highest quality and most innovative mobile video surveillance camera solutions. If you would like more information about our solutions, please do not hesitate to contact us. Our team of experts is always available to help you find the right solution for your specific needs.
