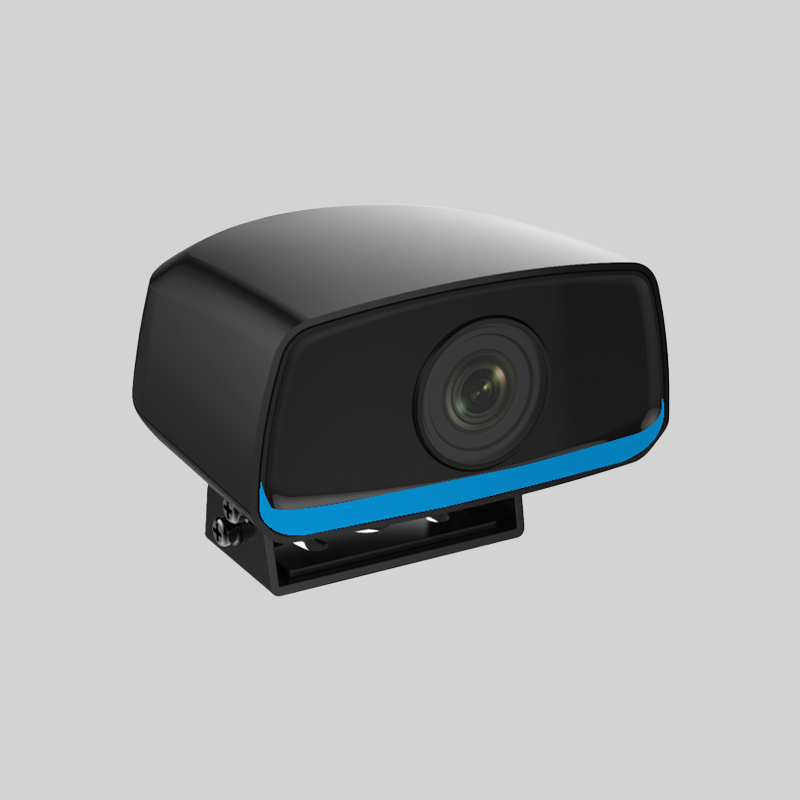

Locomotive CCTV Road Camera
* Support up to 1920x1080@30fps resolution.
* Supercapacitor protection to ensure that regular operation is not affected in the event of a transient power failure.
* Automatic day/night switching; digital noise reduction; comprehensive dynamic function automatic exposure response algorithm;automatic white balance algorithm.
* IP68 level waterproof and dustproof design with high reliability.
* Support for three code streams and support for cell phone monitoring.
* Support for ONVIF version 2.4, support for motion detection.
* Designed mainly for vehicle video monitoring requirements, supporting two modes of in-vehicle and out-of-vehicle.
* Can monitor fast relative motion objects, with strong adaptability to quick and complex scene transformation.
* Seismic structural design.
- TIENUO
- SHANDONG
- 3-7DAYS
- 50-100PCS PER WEEK
- Information
Introduction of Locomotive CCTV Road Camera
A Locomotive CCTV Road Camera is a camera system specifically designed for use on trains to monitor the track and surroundings. It provides real-time surveillance footage for the train operator and other personnel to aid in emergency situations or incidents. The cameras are typically high-resolution and have night vision capabilities. They are mounted on the front or rear of the locomotive and are an important safety measure for train travel.
Techinical Specification
Item | Technical parameters | |
Camera | Lens | 12mm |
Lens adjustment | Horizontal: -20°~20°;Vertical: -15°~25° | |
Field of view | Horizontal 24.2°, vertical 13.7°, diagonal 27.6 | |
Compressi on standard | Video compression standard |
H.264 |
Image | Max. image size | 1920 × 1080 |
Interface |
Interface | Communication interface: Amphenol ZSE02 female Power supply interface: Q14K2APJS, female |
General Specificati ons | Working temperature and humidity | -40℃~75℃, humidity less than 95% (no condensation) |
Power supply | DC 9~36V | |
Power consumption | 5W MAX | |
Protection level | IP68 | |
