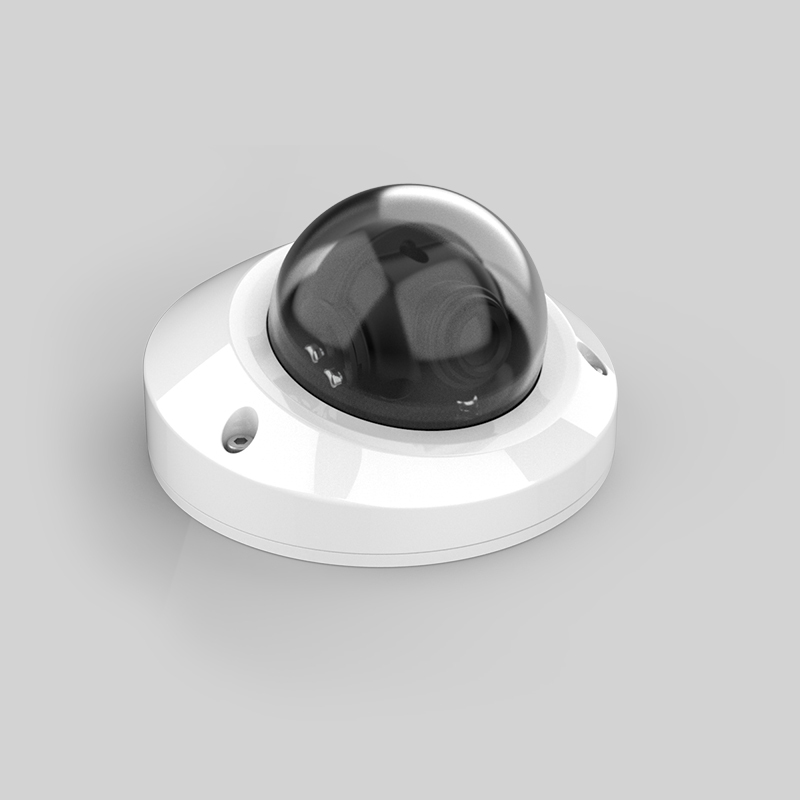

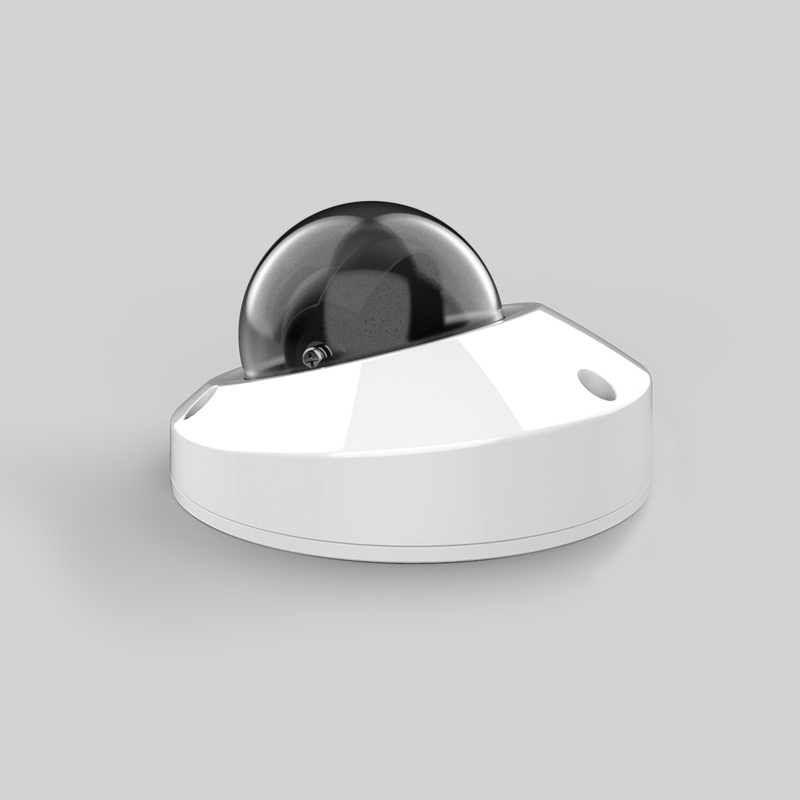

Railway Coaches Network HD Digital Wide Angle Camera
Functions:
Advantage:
Super wide-angle video screen coverage with the server can work for a long time video storage
- TIENUO
- CHINA
- 3-7days
- 30 pcs/day
- Information
- Download
Introduction of Wide-angle network cameras
Wide-angle network cameras are installed at the carriage passing platform to provide wide-angle video coverage of the doors and passing platform.
Specifications
(1) IK10 class explosion-proof housing for the camera.
(2) communication interface using DB9 (10/100Base-T).
(3) the telephoto camera is 1920 × 1080 for the maximum image size, wide-angle camera 1280 × 720.
(4) support PAL / NTSC, frame rate 8 ~ 25 adjustable, the default 10 frames per second, code stream 512Kbps ~ 6Mbps.
(5) The camera should have anti-shake, wide dynamic, low illumination, anti-backlight, blocking alarm, movement alarm, signal loss alarm function.
(6) The camera is powered by the server; the voltage is DC24V, fluctuation range: DC20V ~ DC26V. Power is not more than 7W. A 2-pin WAGO connector is used and meets the 1mm 2 cable crimping requirements.
