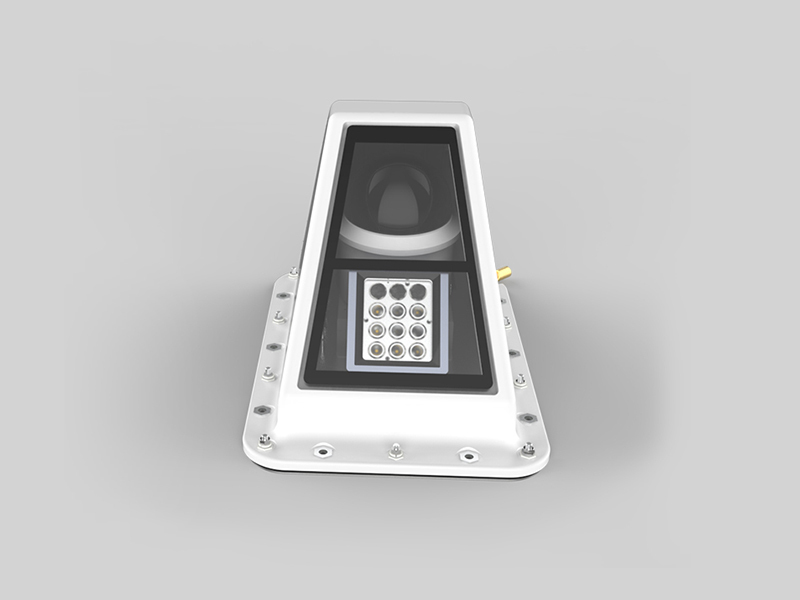

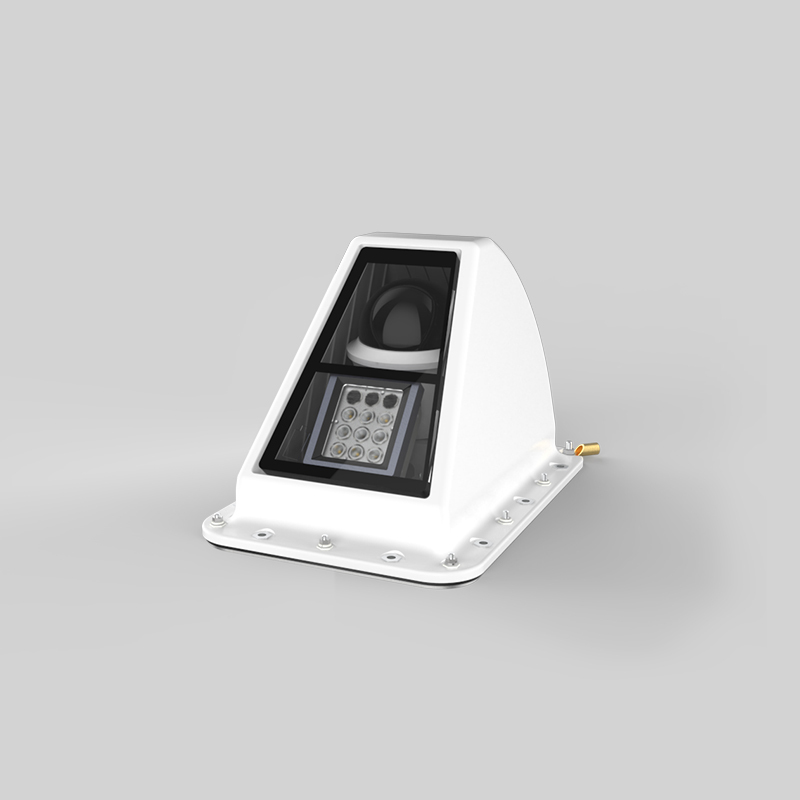

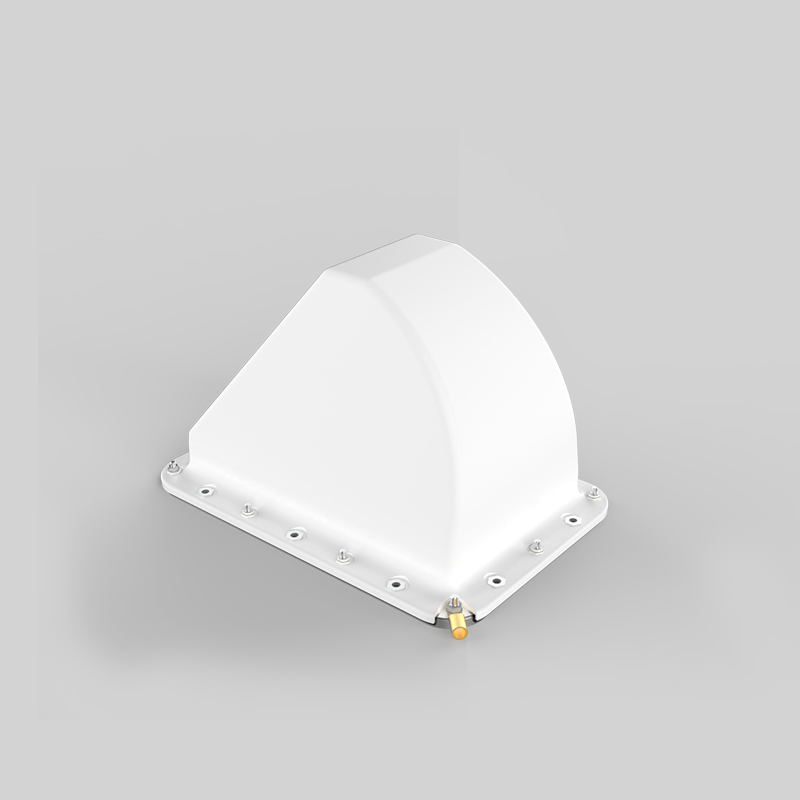

Railway Pantograph Surveillance Camera

Introduction of Railway Pantograph Surveillance Camera

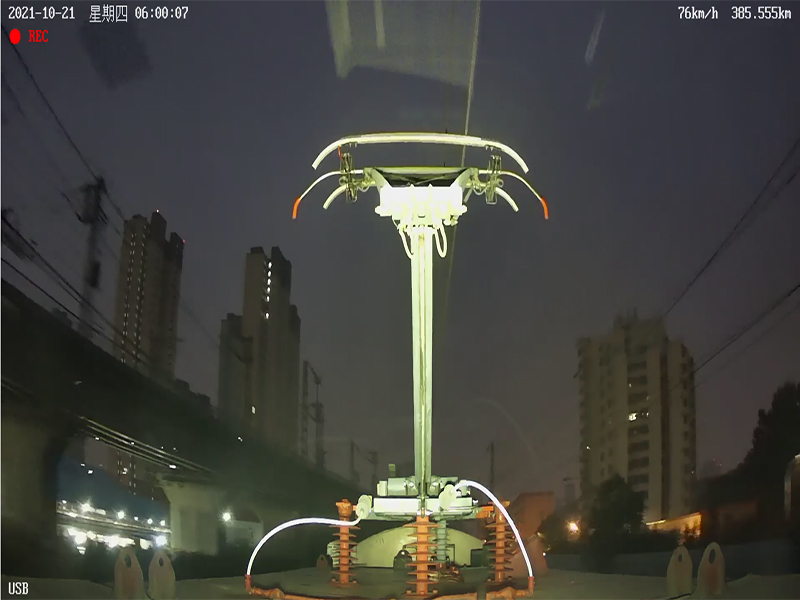

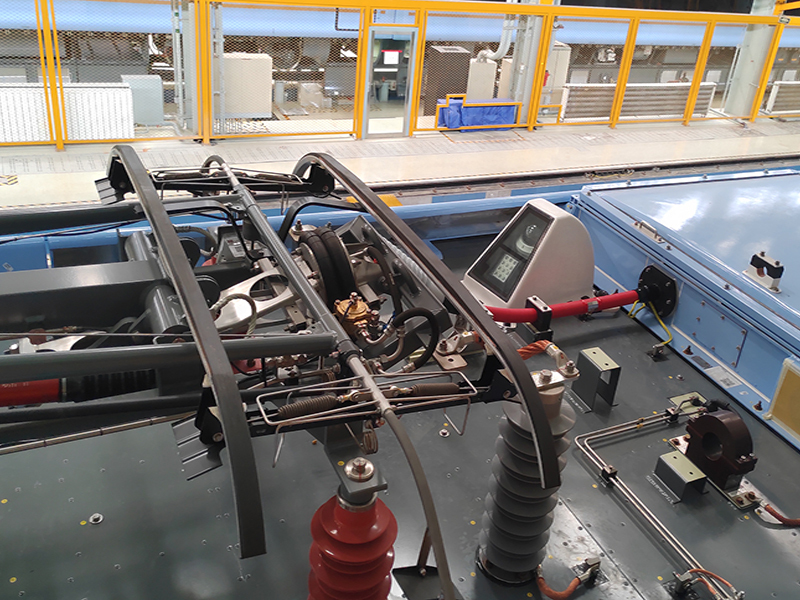

The pantograph video monitoring system is used for real-time monitoring of the working state of the pantograph and contact network on the roof of the vehicle during operation, taking into account the operational state of the high-voltage equipment near the pantograph. A single vehicle storage, centralised monitoring solution for the pantograph video surveillance system.Monitoring screen with digital video decoding and playback function, displaying the video monitoring screen of each pantograph and high voltage component in a screen polling mode. A pantograph camera is installed near the pantographs on the car's roof to capture real-time video monitoring images for encoding and output, which are transmitted via ethernet cable to the pantograph video monitoring server in the carriage where the pantographs are located for recording and storage.

Functions

Pantograph camera weight 19.1kg (deviation range -3% to 0%), actual weight 19.1kg.

Pantograph camera protection class IP68.

1) Integrated pan-tilt camera, fill light, and mechanical housing. 1) With optical zoom lens to meet the requirements of full pantograph coverage with maximum field of view.

2) With anti-shake function to ensure clear and stable picture.

3) With glare suppression function.

4) With the ability to zoom in & out and change the viewing position by operating the zoom and moving the head.

5) Recording video resolution to meet the needs of high-definition video monitoring can manually identify the state of pantograph-related parts.

6) With the electronic shutter, backlight resistance, and automatic adjustment according to the changing range of illumination of the surveillance target.

7) With defogging function to meet the needs of all-weather work.

Specification
